Products
Grade Description Standard Application Download
SPL-ZHFR-3500H High Line Speed
Insulation Compound

EN -50363-7:2005
Type TI 6 & TI 7 ,
IEC - 60332-1 & IEC - 60332-2 , NBR 13248

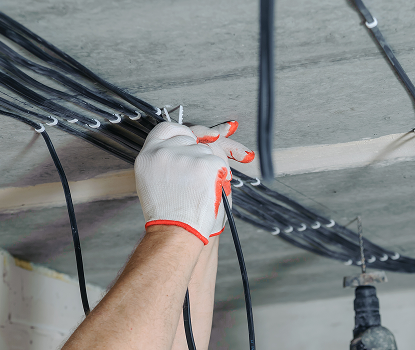

Building Wire
SPL-ZHFR-3500Q High LOI (35%)
Insulation Compound

EN -50363-7:2005, Type Tl 7,
IEC - 60332-1, IEC - 60332-2

Building Wire & FTTH
All Ecotek grades are RoHS and REACH compliant
Grade Description Standard Application Download
SPL-AFOSR* Oil resistance 100°C/24 hrs
High-Performance Jacketing

BS-7655 Type9 ,IEC60502 Type ST2,
IEC -60332-3 CAT-C

AT/AR, Oil & UV Resistance
Sheathing

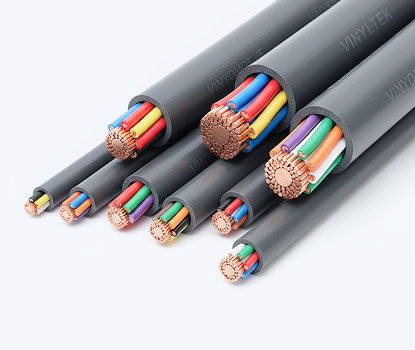

for Control Cables
SPL-FR-TM53 OIL RESISTANCE Sheathing / Jacketing Application RoHS Compliance

EN 50290-2-22 Type TM53

RoHS, Oil & Heat Resistant, Cables, 70°C for 4 hrs
SPL-105FROR / 90 RoHS 105°C Oil Resistant Flame Retardant
RoHS Compliance

EN 50363-3 :2005 Type Tl3,
EN50363-4-1 :2005 Type TM3

Heat Resistant, Oil Resistance,
Flame Retardant Cable
SPL-FRLS-206* OIL RESISTANCE
Sheathing / Jacketing Application

IEC - 60502 & IS 5831 Type ST2
IEC - 60332-3 CAT C

Oil Resistance 70°C for
4 hrs Sheathing
for Control Cables
* Available in RoHS version also.
Grade Description Standard Application Download
SPL-VTEK-2213 RoHS Compliance
Automotive Cable Compound

AVS/AVSS  as per JASO D 611,
Temp Rating :-40°C to 80°C

Thin Wall Insulation for
Automotive Cable
SPL-VTEK-2213E RoHS Compliance Automotive Cable Compound with JEC TEC Air Oven

AVS/AVSS as per JASO D 611,JIS K 7212
Temp Rating : -40°C to 80°C

Thin Wall Insulation for Automotive Cable
SPL-VTEK-611 RoHS Compliance Automotive
Cable Compound (T2 Battery)

Class B as per ISO 6722,
Temp Rating :- 40°C to 105°C

Automotive Cable for 6.0 sq.mm
to 35 sq.mm & Outer Sheathing
SPL-VTEK-606T RoHS Compliance
Automotive Cable Compound (T2)

Class B as per ISO 6722,
Temp Rating : -40°C to 105°C

Automotive Cable with 0.35 sq.mm
to 25 sq.mm & Outer Sheathing
SPL-VTEK-602/01 RoHS Compliance
Automotive Cable Compound (T2)

Class B as per ISO 6722, LV 112
Temp Rating : -40°C to 105°C

Automotive Cable with
0.35 sq.mm to 4.0 sq.mm
SPL-VTEK-125T RoHS Compliance
Automotive Cable Compound (T3)

Class C as per ISO 6722
Temp Rating : -40°C to 125°C

Automotive Cable with
0.35 sq.mm to 6.0 sq.mm

* Available in RoHS version also.

Grade Description Standard Application Download
SP-PESC-11 Excellent Heat Deformation Resistant
for Conductor & Insulation Shielding

ICEA - S-66-524 / NEMA WC7,
BS 6622,
IEC-60502

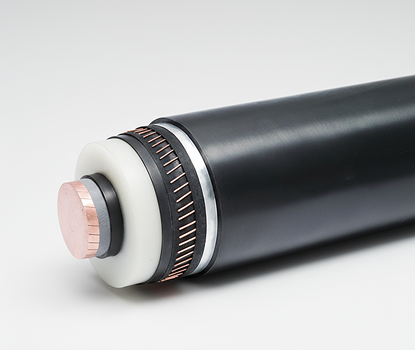

Medium Voltage Power Cable
test test

test

test
Grade Description Standard Application Download
SPP-05-CA Environmental Stress Crack
Resistance (ESCR) & Weather
Resistance LLDPE Compound

BS-6234 :TYPE 03C,TS1,
ASTM D 1248,TYPE 2,
Class C CAT-5,Grade E5,J3

Telephone & Power
Cable Sheathing
SPL-MD Black/Natural MDPE compound with
ESCR and heat deformation properties

IS 7098  (Part-Ill) 1993, ASTM D 1248, CLASS C,
Category 5, Grade E8, E9,J4, BS 6234, Type 03C, TS2,IEC - 60502, Type ST7, IEC - 60840, Type  ST7

Power & Communication Cable Sheathing
HTP-HDS HDPE Sheathing Compound with
Excellent ESCR and
Heat Deformation Properties

BS-6234 :Type H03C,
TS2,ASTM D 1248, Type-Ill,
Class C CAT-5, Grade EB, E9,J4

Optical Fibre & Communication
Cable / Power Cable
HTP-HD-TR Excellent TRACK RESISTANCE
HDPE Sheathing Compound

ASTM D 2303

Jacketing of Optical Fibre Cable for HV
Power Transmission lines
HTP-HD-TR 23 TRACK RESISTANCE HOPE
Sheathing Compound
(Carbon black content 2.3%)

ASTM D 2303

Jacketing of telecom &
Optical Fibre Cable
HTP-HDS-HMW High molecular weight
PE Sheathing Compound

ASTM D 124B, Type-Ill,
Class C CAT-5, Grade E 11, E9,J5

Single Insulation Telephone &
Sheathing of Various Cables
including Jelly Filled Copper Cable
Grade Description Standard Application Download
SPL-SIGP-03 Silicone Rubber Compound (150°C) IE 5 to IS 6380 Insulation of Heat Resistant Cable
SPL-SiFr-02 Ceramifiable Silicone Rubber Compound (180°C) El 2 to BS EN 50363-1 Insulation of Fire Resistant Cable
